k8s安装traefik与实操

axing
axing
2025-05-30 / 0 评论 / 1 阅读 / 正在检测是否收录...

一、安装traefik

先安装traefik-crds、下面的


---
# Source: traefik/templates/rbac/serviceaccount.yaml
kind: ServiceAccount
apiVersion: v1
metadata:
  name: traefik-release
  namespace: traefik
  labels:
    app.kubernetes.io/name: traefik
    app.kubernetes.io/instance: traefik-release-default
    helm.sh/chart: traefik-35.4.0
    app.kubernetes.io/managed-by: Helm
  annotations:
automountServiceAccountToken: false
---
# Source: traefik/templates/rbac/clusterrole.yaml
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik-release-default
  labels:
    app.kubernetes.io/name: traefik
    app.kubernetes.io/instance: traefik-release-default
    helm.sh/chart: traefik-35.4.0
    app.kubernetes.io/managed-by: Helm
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - nodes
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - discovery.k8s.io
    resources:
      - endpointslices
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io
    resources:
      - ingressclasses
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - traefik.io
    resources:
      - ingressroutes
      - ingressroutetcps
      - ingressrouteudps
      - middlewares
      - middlewaretcps
      - serverstransports
      - serverstransporttcps
      - tlsoptions
      - tlsstores
      - traefikservices
    verbs:
      - get
      - list
      - watch
---
# Source: traefik/templates/rbac/clusterrolebinding.yaml
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: traefik-release-default
  labels:
    app.kubernetes.io/name: traefik
    app.kubernetes.io/instance: traefik-release-default
    helm.sh/chart: traefik-35.4.0
    app.kubernetes.io/managed-by: Helm
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-release-default
subjects:
  - kind: ServiceAccount
    name: traefik-release
    namespace: traefik

---
# 添加PVC定义
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: traefik-data-pvc
  namespace: traefik
spec:
  accessModes:
    - ReadWriteMany   # CephFS支持多节点读写
  storageClassName: ceph-cephfs
  resources:
    requests:
      storage: 1Gi    # 根据实际需求调整大小
---
# Source: traefik/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefik-release
  namespace: traefik
  labels:
    app.kubernetes.io/name: traefik
    app.kubernetes.io/instance: traefik-release-default
    helm.sh/chart: traefik-35.4.0
    app.kubernetes.io/managed-by: Helm
  annotations:
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: traefik
      app.kubernetes.io/instance: traefik-release-default
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 0
      maxSurge: 1
  minReadySeconds: 0
  template:
    metadata:
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/path: "/metrics"
        prometheus.io/port: "9100"
      labels:
        app.kubernetes.io/name: traefik
        app.kubernetes.io/instance: traefik-release-default
        helm.sh/chart: traefik-35.4.0
        app.kubernetes.io/managed-by: Helm
    spec:
      securityContext:
        runAsUser: 0
        runAsGroup: 0
        fsGroup: 0
        capabilities:
          add: ["NET_BIND_SERVICE"]
      serviceAccountName: traefik-release
      automountServiceAccountToken: true
      terminationGracePeriodSeconds: 60
      hostNetwork: false
      containers:
      - image: registry.cn-guangzhou.aliyuncs.com/xingcangku/traefik:v3.0.0
        imagePullPolicy: IfNotPresent
        name: traefik-release
        resources:
        readinessProbe:
          httpGet:
            path: /ping
            port: 9000
            scheme: HTTP
          failureThreshold: 1
          initialDelaySeconds: 2
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 2
        livenessProbe:
          httpGet:
            path: /ping
            port: 9000
            scheme: HTTP
          failureThreshold: 3
          initialDelaySeconds: 2
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 2
        lifecycle:
        ports:
        - name: metrics
          containerPort: 9100
          protocol: TCP
        - name: traefik
          containerPort: 9000
          protocol: TCP
        - name: web
          containerPort: 8000
          protocol: TCP
        - name: websecure
          containerPort: 8443
          protocol: TCP
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
            - NET_BIND_SERVICE
          readOnlyRootFilesystem: false
        volumeMounts:
          - name: data
            mountPath: /data
            readOnly: false   # 允许写入
        args:
          - "--global.checknewversion"
          - "--global.sendanonymoususage"
          - "--entryPoints.metrics.address=:9100/tcp"
          - "--entryPoints.traefik.address=:9000/tcp"
          - "--entryPoints.web.address=:8000/tcp"
          - "--entryPoints.websecure.address=:8443/tcp"
          - "--api.dashboard=true"
          - "--ping=true"
          - "--metrics.prometheus=true"
          - "--metrics.prometheus.entrypoint=metrics"
          - "--providers.kubernetescrd"
          - "--providers.kubernetescrd.allowEmptyServices=true"
          - "--providers.kubernetesingress"
          - "--providers.kubernetesingress.allowEmptyServices=true"
          - "--providers.kubernetesingress.ingressendpoint.publishedservice=default/traefik-release"
          - "--entryPoints.websecure.http.tls=true"
          - "--log.level=INFO"

        env:
          - name: POD_NAME
            valueFrom:
              fieldRef:
                fieldPath: metadata.name
          - name: POD_NAMESPACE
            valueFrom:
              fieldRef:
                fieldPath: metadata.namespace
      volumes:
        # 替换emptyDir为PVC
        - name: data
          persistentVolumeClaim:
            claimName: traefik-data-pvc
      securityContext:
        runAsGroup: 65532
        runAsNonRoot: true
        runAsUser: 65532
---
# Source: traefik/templates/ingressclass.yaml
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  annotations:
    ingressclass.kubernetes.io/is-default-class: "true"
  labels:
    app.kubernetes.io/name: traefik
    app.kubernetes.io/instance: traefik-release-default
    helm.sh/chart: traefik-35.4.0
    app.kubernetes.io/managed-by: Helm
  name: traefik-release
spec:
  controller: traefik.io/ingress-controller

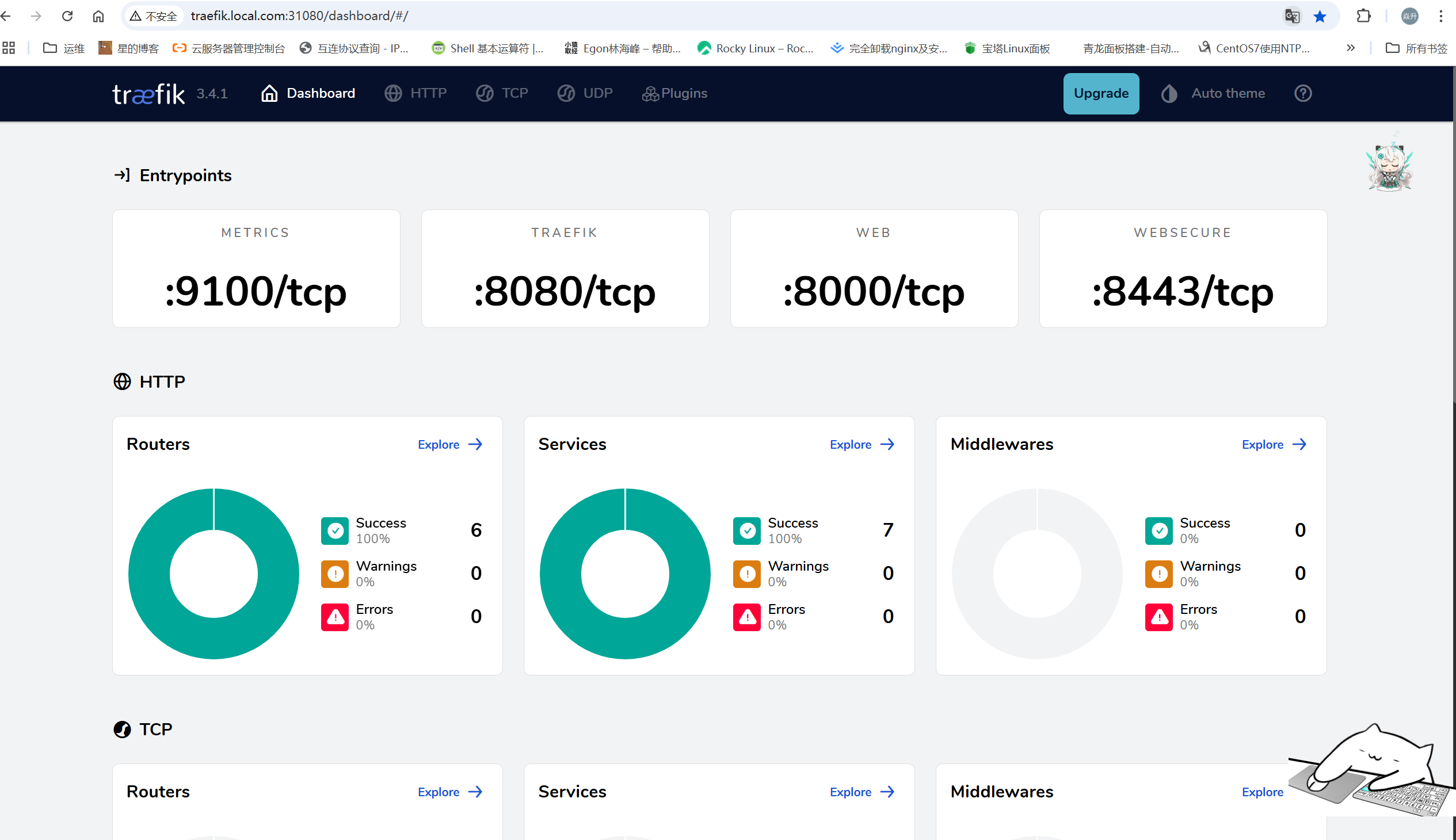

root@k8s01:~/helm/traefik/traefik-helm-chart-35.4.0/traefik# cat dashboard.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: dashboard
  namespace: traefik
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`traefik.local.com`)
      kind: Rule
      services:
        - name: api@internal
          kind: TraefikService

二、测试traefik

kubectl create ns test-ns
kubectl -n test-ns create deployment test-app --image=registry.cn-guangzhou.aliyuncs.com/xingcangku/nginx-alpine:1.0
kubectl -n test-ns expose deployment test-app --port=80
cat <<EOF | kubectl apply -f -
> apiVersion: networking.k8s.io/v1
> kind: Ingress
> metadata:
>   name: test-ingress
>   namespace: test-ns
> spec:
>   ingressClassName: traefik
>   rules:
>   - http:
>       paths:
>       - path: /test
>         pathType: Prefix
>         backend:
>           service:
>             name: test-app
>             port:
>               number: 80
> EOF

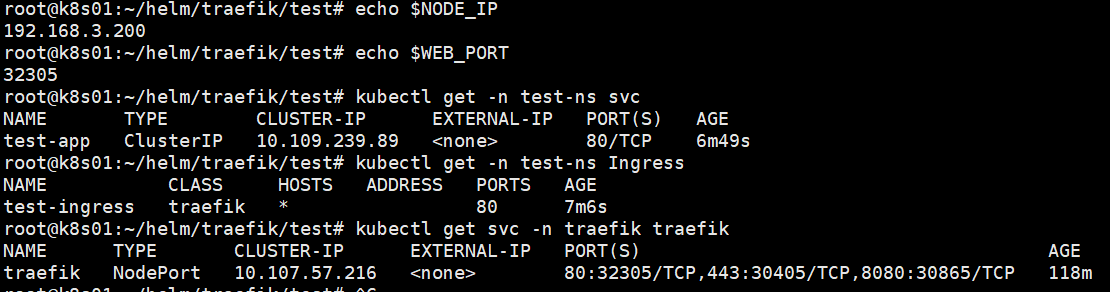

WEB_PORT=$(kubectl get svc -n traefik traefik -o jsonpath='{.spec.ports[?(@.name=="web")].nodePort}')

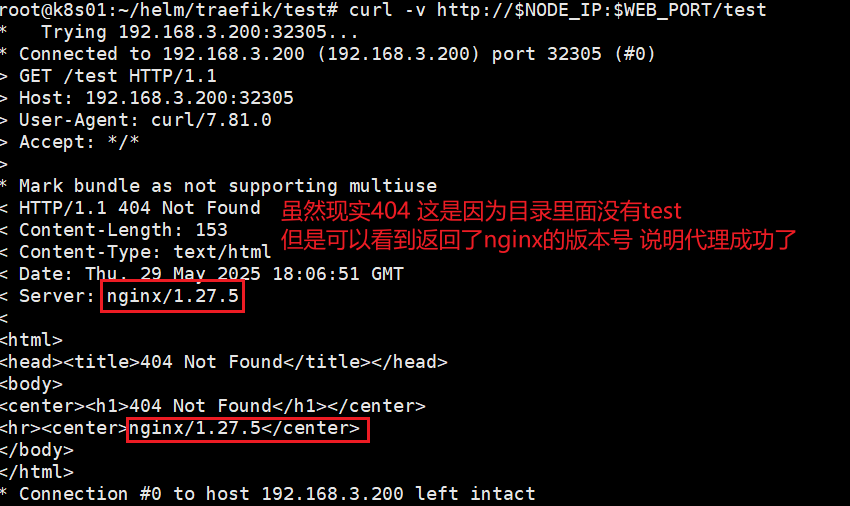

curl -v http://$NODE_IP:$WEB_PORT/test
*   Trying 192.168.3.200:32305...
* Connected to 192.168.3.200 (192.168.3.200) port 32305 (#0)
> GET /test HTTP/1.1
> Host: 192.168.3.200:32305
> User-Agent: curl/7.81.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 404 Not Found
< Content-Length: 153
< Content-Type: text/html
< Date: Thu, 29 May 2025 18:06:51 GMT
< Server: nginx/1.27.5
<
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.27.5</center>
</body>
</html>
* Connection #0 to host 192.168.3.200 left intact


#更新路径
cat <<EOF | kubectl apply -f -
> apiVersion: networking.k8s.io/v1
> kind: Ingress
> metadata:
>   name: test-ingress
>   namespace: test-ns
> spec:
>   ingressClassName: traefik
>   rules:
>   - http:
>       paths:
>       - path: /
>         pathType: Prefix
>         backend:
>           service:
>             name: test-app
>             port:
>               number: 80
> EOF

# 测试访问根路径
curl -v http://$NODE_IP:$WEB_PORT/
*   Trying 192.168.3.200:32305...
* Connected to 192.168.3.200 (192.168.3.200) port 32305 (#0)
> GET / HTTP/1.1
> Host: 192.168.3.200:32305
> User-Agent: curl/7.81.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Accept-Ranges: bytes
< Content-Length: 615
< Content-Type: text/html
< Date: Thu, 29 May 2025 18:08:48 GMT
< Etag: "67ffa8c6-267"
< Last-Modified: Wed, 16 Apr 2025 12:55:34 GMT
< Server: nginx/1.27.5
<
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>
* Connection #0 to host 192.168.3.200 left intact
#可以在集群内部访问
curl http://traefik-service.default.svc.cluster.local
root@k8s01:~/helm/traefik/test# kubectl get ingress -n test-ns
NAME           CLASS     HOSTS   ADDRESS   PORTS   AGE
test-ingress   traefik   *                 80      48m
root@k8s01:~/helm/traefik/test# kubectl describe ingress test-ingress -n test-ns
Name:             test-ingress
Labels:           <none>
Namespace:        test-ns
Address:
Ingress Class:    traefik
Default backend:  <default>
Rules:
  Host        Path  Backends
  ----        ----  --------
  *
              /   test-app:80 (10.244.1.13:80)
Annotations:  <none>
Events:       <none>
