一、创建 radosgw服务
root@ubuntu01:~# ceph orch apply rgw default es --placement="count:3"
Scheduled rgw.default update...<realm-name>：RadosGW 的域名，可以自定义，例如 default.
<zone-name>：RadosGW 的区域名，可以自定义，例如 es.
--placement="count:1"：表示 RadosGW 实例的数量。如果你想在多个节点上部署，可以增加 count 的值，或者指定节点列表二、验证radosgw服务状态
root@ubuntu01:~# ceph orch ps | grep rgw
rgw.default.ubuntu01.lusoxe ubuntu01 *:80 starting - - - - <unknown> <unknown> known>
rgw.default.ubuntu02.nvamia ubuntu02 *:80 starting - - - - <unknown> <unknown> known>
rgw.default.ubuntu03.rkgoya ubuntu03 *:80 starting - - - - <unknown> <unknown> known>
root@ubuntu01:~# ceph -s
cluster:
id: 5b0e9b94-e6bb-11ef-a18c-274714e73e14
health: HEALTH_WARN
clock skew detected on mon.ubuntu03
1 pool(s) do not have an application enabled
services:
mon: 3 daemons, quorum ubuntu01,ubuntu02,ubuntu03 (age 8h)
mgr: ubuntu02.jmaxlt(active, since 8h), standbys: ubuntu01.exrhij
mds: 1/1 daemons up, 1 standby
osd: 3 osds: 3 up (since 8h), 3 in (since 2w)
rgw: 3 daemons active (3 hosts, 1 zones)
data:
volumes: 1/1 healthy
pools: 10 pools, 181 pgs
objects: 9.37k objects, 2.5 GiB
usage: 8.5 GiB used, 111 GiB / 120 GiB avail
pgs: 181 active+clean
io:
client: 214 KiB/s rd, 5.1 KiB/s wr, 247 op/s rd, 141 op/s wr三、验证 radosgw 存储池资源
#查看存储池列表
root@ubuntu01:~# ceph osd pool ls
.mgr
kubernetes
k8s-rbd
k8s
cephfs_data
cephfs_metadata
.rgw.root
default.rgw.log
default.rgw.control
default.rgw.meta#查看默认radosgw存储池信息
root@ubuntu01:~# radosgw-admin zone get --rgw-zone=default --rgw-zonegroup=default
{
"id": "7f883cbd-8ada-48aa-9358-f2c09aee0ca7",# 区域的唯一标识符
"name": "default",# 默认区域的名称
"domain_root": "default.rgw.meta:root",# 区域的根域名
"control_pool": "default.rgw.control",# 系统控制池，在有数据更新是，通知其他RGW更新缓存
"gc_pool": "default.rgw.log:gc", # 用于垃圾回收的存储池
"lc_pool": "default.rgw.log:lc",# 用于存储日志的存储池
"log_pool": "default.rgw.log",# 存储日志信息，用于记录各种log信息
"intent_log_pool": "default.rgw.log:intent",
"usage_log_pool": "default.rgw.log:usage",
"roles_pool": "default.rgw.meta:roles",# default.rgw.meta:元数据存储池，通过不同的名称空间分别存储不同的rados对象
"reshard_pool": "default.rgw.log:reshard",
"user_keys_pool": "default.rgw.meta:users.keys",# 用户的密钥名称空间users.keys
"user_email_pool": "default.rgw.meta:users.email",# 用户的email名称空间users.email
"user_swift_pool": "default.rgw.meta:users.swift",# 用户的subuser的名称空间users.swift
"user_uid_pool": "default.rgw.meta:users.uid", # 用户UID
"otp_pool": "default.rgw.otp",
"system_key": {
"access_key": "",
"secret_key": ""
},
"placement_pools": [
{
"key": "default-placement",
"val": {
"index_pool": "default.rgw.buckets.index",# 存放bucket到object的索引信息
"storage_classes": {
"STANDARD": {
"data_pool": "default.rgw.buckets.data"# 存放对象的数据
}
},
"data_extra_pool": "default.rgw.buckets.non-ec",# 数据的额外信息存储池
"index_type": 0,
"inline_data": true
}
}
],
"realm_id": "",
"notif_pool": "default.rgw.log:notif"
}#查看默认配置信息
root@ubuntu01:~# ceph osd pool get default.rgw.meta crush_rule
crush_rule: replicated_rule
root@ubuntu01:~# ceph osd pool get default.rgw.meta size
size: 3
root@ubuntu01:~# ceph osd pool get default.rgw.meta pgp_num
pgp_num: 16
root@ubuntu01:~# ceph osd pool get default.rgw.meta pg_num
pg_num: 16四、访问radosgw服务

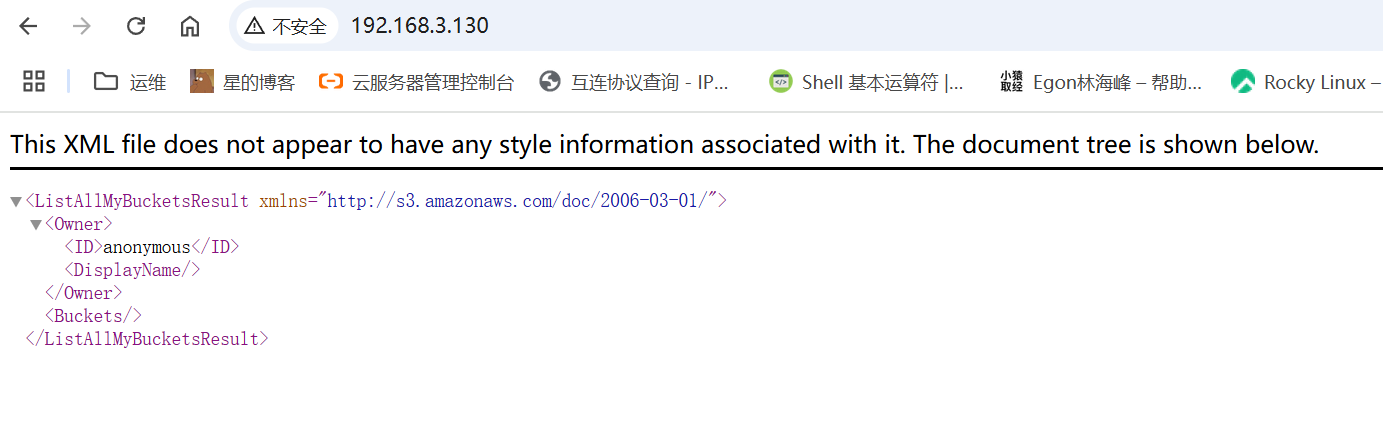

访问radosgw服务所在的节点 IP+默认 80 端口既可。
五、RadosGW https

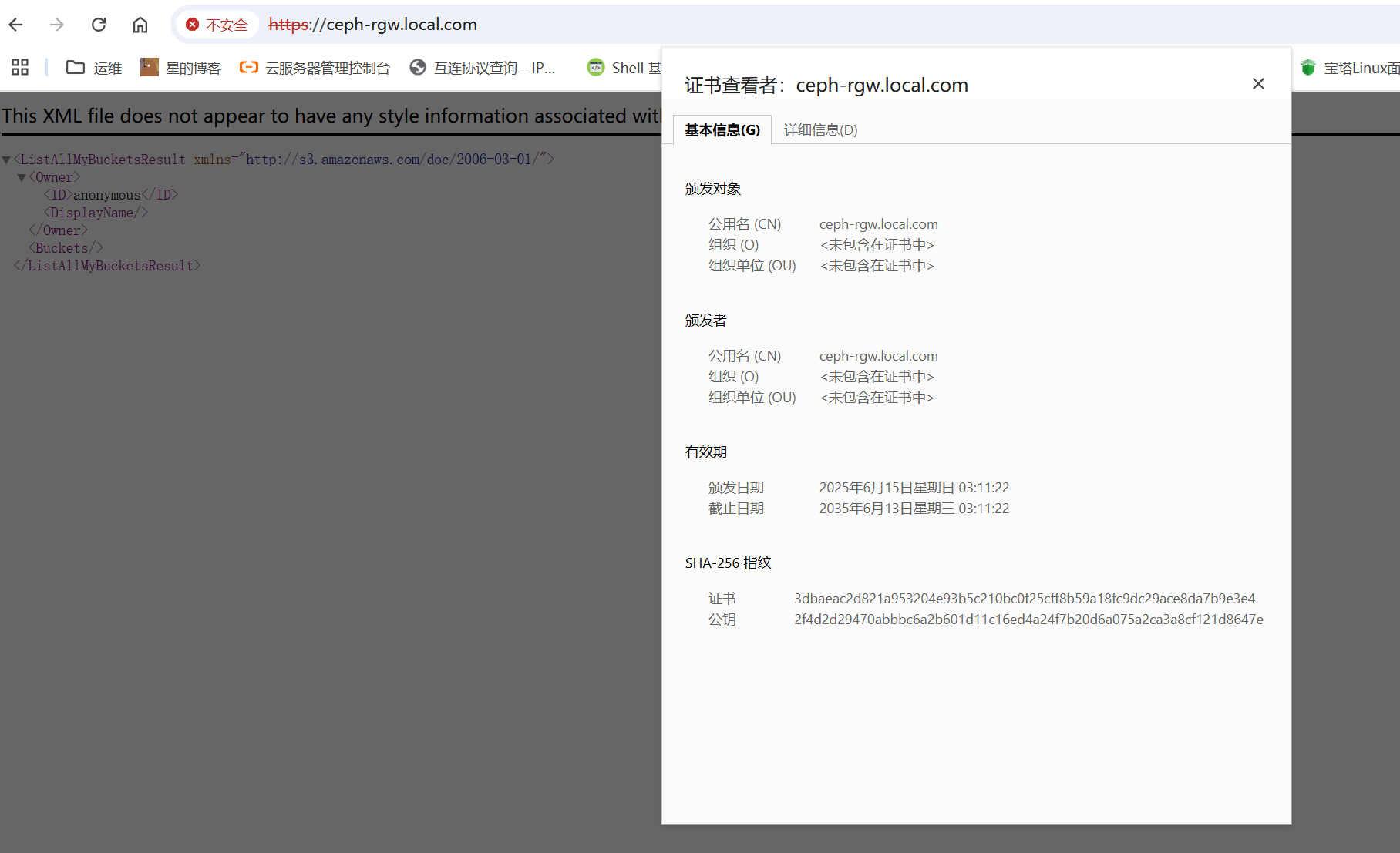

5.1生成自签证书
root@ubuntu01:/# mkdir -p /etc/ceph/rgw/cert
root@ubuntu01:/# openssl req -newkey rsa:2048 -x509 -days 3650 -nodes -out /etc/ceph/rgw/cert/rgw-cert.pem -keyout /etc/ceph/rgw/cert/rgw-key.pem -subj "/CN=ceph-rgw.local.com"
Generating a RSA private key
...............................+++++
..................................+++++
writing new private key to '/etc/ceph/rgw/cert/rgw-key.pem'
-----
root@ubuntu01:/# tree /etc/ceph/rgw/cert/
/etc/ceph/rgw/cert/
├── rgw-cert.pem
└── rgw-key.pem
0 directories, 2 files5.2创建配置文件
#将公钥和私钥内容添加到配置文件中 rgw.yaml
service_type: rgw
service_id: default
placement:
hosts:
- ubuntu01
- ubuntu02
- ubuntu03
spec:
rgw_frontend_ssl_certificate: |
-----BEGIN PRIVATE KEY-----
MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQC/q3zdOnRPSsRz
OlP1Z0rBYJUn9VzZF+Rlnt7IN3q+6Ir/jCb6jtMYP1A+KiTcv8OaTdre4OxOjIFG
iK1bZpEl16q+phKGbnfbphrptCVwpw7vV3n7Pjz57awXM728S7ql62JutIfrDWqN
YY0EnMeO7xFrXdy4ow8d3GobhsfiTcU38nyWXZ5Qy7vd43kJElMxbbsXJrhPO43x
6gJCWdvIztdjewtFW2rqy8cDPaKxcXubYAOlJUzN53eAdGxC6Br6HWsyVn8VnsPI
UQigwSzOx6DAa9QKjVIIi454pb3C+se1TD3el1JhZ5ZDav5g0Fp9zB1DetkR3vh7
3ixqwddRAgMBAAECggEADohJElkBQpXPqVDt1rh7MYhKJtpyrL8kARR3ncSfGOR2
zYNp3SuBE+CRC/WUD+y2PvfSNX3mTNpYXum0Ay8WqEDe4E+lLe4oRk4k0j1nbVAt
ULZYOFVyuBxuJOA2bZVsVHIxZ2VmvMqqnoeb8pKUiuDTeEmIl7M9TS1OGkIw25aa
VUU+kFLNwhVXQPAYu17dApl5GWI32gNcfZD7QF3fwNMz+u4h6dLCBiI+IQmXjtzX
OCPs2exwfj9NaZ6jxZPQU1i2YoMRh2AuephP7hW+zeTUpgd4A6VHkX5ASKvs89U2
qel2639RLqdEg1bu7f5kHOlqYVmwuj6rw+EAyfxpQQKBgQDl81/euRc7NKj3uLoh
yJqe/vQkvLKgKwVDAM6aKdI8/FhG1LNYbm5QJ83EuSmXSPm20bJjZWOjmQuIXSV2
V2UvmygHcQOeZsipJPgc2Yza6b3MDCKbBq/Kb4YrTtVLogjgKbbJXg99sSPKgJFG
B4g4OGs8H2inkE3tKOn4CXUF2QKBgQDVYfXnMuGcZ8LfBiD1zfX1WGt8jKsoDI2/
LGGwQa/0Lo7xgqrN47hOFKMDGWglJPT06G2JR3gsPIvJlZNo5m6tYoLtZ0vEERlK
+YzTVmTA/ThGAK7rePQv7GOGWubF6WYA8Bdyfqnm0yv8QtptcXq4bzyLEGMTKh4a
mNOBw0eaOQKBgQDh4IczyKzBQ6EWdSahOORpehdoXtM38gphHtHTLXGO5nHwYc8p
9o/1vKOrshbgvJZOtv18FYQil5t0f8rkzERg1xAi/yiG2IATZnUyIaDzCNefL+xu
S8syFwq8T9vFR41gZJlghDzDQtXdfR02pP9x+jmb/V5X+rARXjc1plSFQQKBgAvG
0UyGSV9Zdq7aZr1KNbXpwFzqYpPeRYB0kZuptG1UmH0JyiV82PIuP2TvZQkPxhky
LsFx2VcPrGNexvj2JsuY8ULq/Yp/qxaxOS18yijAkPeEGCNU1J1EfaWvpKbtn7yT
g6fFB9l+dCIDCo0Zwz0knoHKUL2BCJJNNvclcPE5AoGAXCuMEjSk54OUXoKj355l
NbbpnrGofy7Pmi9H7dKxgKiN7wonjhV9Rztrbsms9lD4Ab/B1CrIRz6Hp5si+bw/
mDDboXmgEbNGMccxknye2p4S34R6RoERbNlXvor3Z46aWMP9Suqwa11WdklXQiaW
wLC0RkGadfimQSxSGuFaJDE=
-----END PRIVATE KEY-----
-----BEGIN CERTIFICATE-----
MIIDGzCCAgOgAwIBAgIUYkIzcxcGB4FBt1qTLXE9tOKNeMUwDQYJKoZIhvcNAQEL
BQAwHTEbMBkGA1UEAwwSY2VwaC1yZ3cubG9jYWwuY29tMB4XDTI1MDYxNDE5MTEy
MloXDTM1MDYxMjE5MTEyMlowHTEbMBkGA1UEAwwSY2VwaC1yZ3cubG9jYWwuY29t
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAv6t83Tp0T0rEczpT9WdK
wWCVJ/Vc2RfkZZ7eyDd6vuiK/4wm+o7TGD9QPiok3L/Dmk3a3uDsToyBRoitW2aR
JdeqvqYShm5326Ya6bQlcKcO71d5+z48+e2sFzO9vEu6petibrSH6w1qjWGNBJzH
ju8Ra13cuKMPHdxqG4bH4k3FN/J8ll2eUMu73eN5CRJTMW27Fya4TzuN8eoCQlnb
yM7XY3sLRVtq6svHAz2isXF7m2ADpSVMzed3gHRsQuga+h1rMlZ/FZ7DyFEIoMEs
zsegwGvUCo1SCIuOeKW9wvrHtUw93pdSYWeWQ2r+YNBafcwdQ3rZEd74e94sasHX
UQIDAQABo1MwUTAdBgNVHQ4EFgQUbL6TyHoVR1jUBE+mT0ETcvJNwq0wHwYDVR0j
BBgwFoAUbL6TyHoVR1jUBE+mT0ETcvJNwq0wDwYDVR0TAQH/BAUwAwEB/zANBgkq
hkiG9w0BAQsFAAOCAQEAZ/8toy7FIUG4uq+SxP4dxcC/P/njpCklzoA5BGc8aEQ+
M+g/0eTR60ib6HWXp2PtezQ5fK1mZLImSeuHCcdAXddEq0opXaS3wEMs8N27fDLU
jMjilBhzDlp7YnxZ64YzF3HzP2qHbDwoJjz/MqFSovkFEb4m8RYZNl6t/5U8XSmx
vxWdypbmmd+Zr07BQ1l1ldeGi0CD9gxSYK3exF6Gdr7G/J7vC8Up0xHKnaZSqKOH
vP8e/WL7T+p0s0ypjAIR29M1E9XfULt8xNQc3KtiEcvAZbxE3HWG7vnp93S/42vA
errp5uKlZdaOaA1OD0/nmrP36hz6RnuUqIF88p7NnQ==
-----END CERTIFICATE-----
ssl: true
rgw_frontend_port: 4435.3更新RGW配置
root@ubuntu01:~# ceph orch apply -i rgw.yaml
Scheduled rgw.default update...
root@ubuntu01:~# ceph orch ps | grep rgw
rgw.default.ubuntu01.lusoxe ubuntu01 *:80 running (31m) 12s ago 31m 101M - 18.2.4 2bc0b0f4375d 510eb15ca011
rgw.default.ubuntu02.abhedc ubuntu02 *:443 starting - - - - <unknown> <unknown> <unknown>
rgw.default.ubuntu02.nvamia ubuntu02 *:80 running (31m) 13s ago 31m 106M - 18.2.4 2bc0b0f4375d 4a733c6c4488
rgw.default.ubuntu03.pvvalj ubuntu03 *:443 starting - - - - <unknown> <unknown> <unknown>
rgw.default.ubuntu03.rkgoya ubuntu03 *:80 running (31m) 13s ago 31m 101M - 18.2.4 2bc0b0f4375d d341d13d6bac 5.4验证访问

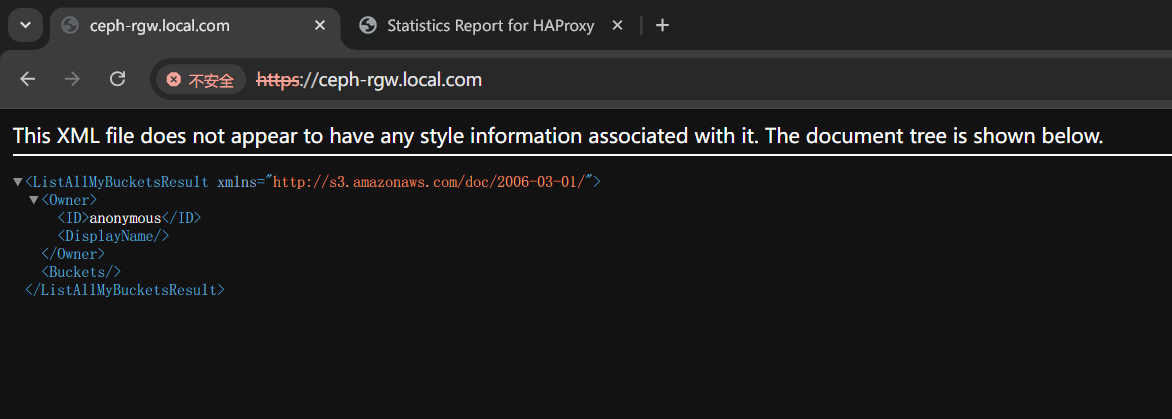

在本地host添加域名解析

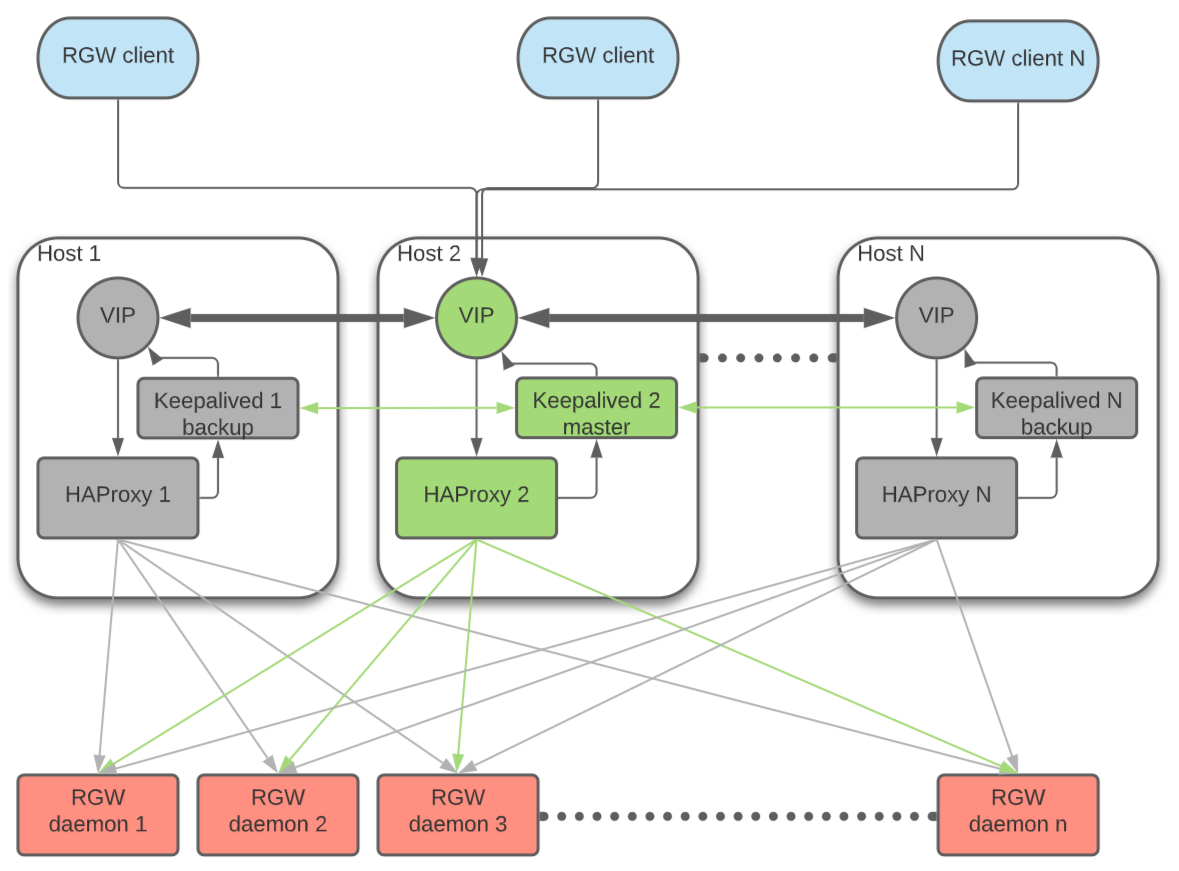

六、RadosGW 高可用
6.1自定义https 端口与副本数
#修改默认端口并指定运行在 ceph1 和 ceph2 节点
root@ceph-1:/etc/ceph/rgw# cat > rgw.yaml << EOF
service_type: rgw
service_id: default
placement:
hosts:
- ceph-1
- ceph-2
- ceph-3
spec:
rgw_frontend_ssl_certificate: |
-----BEGIN PRIVATE KEY-----
MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQC8EYtfCItzKsoy
zh9AeiYMuJAebFaBkEpF00AYGvnviwOBUx8f4CjStnXAUtNq7nFrhTldai1B+pdL
eZomzgfFTO6oN0tz6KBXEDJG+yoMqrce0RlGJH6i5ML1znWmWsVynU1xrqGC2D1J
jIERsoyx+1vIuYHR8EBpKf7ldLYDqZ79bAEEj1ayzzPOIS4X3g9AAWo3EMCLRzCU
ZY1GIfqXuPi2xMJKYfovXM1agU178qCqNlGFrjtAHOSYpmMssGM638Jh8ExaJxBU
4UvKcxc54Efypancj6ZffgEx07A6tVFk4zQrFp+2vbYTkcs3tF5KrRBvN1ExDqsb
fofCTI+7AgMBAAECggEAaiYE4giynLgkE/TfEsdevoNVZLaFRO+p3CtV28UuGJP/
0HiX8qfUosm1QG3/QjV+8s7pB96r2LeVuVXTOd/D5wp7EZrUDYHZLgrINeQBYdDh
NpWSjFKA33P6zj5PjStikkRSt713D6D5Ro/1MYXzf2l97pc1vMa7tB+t7Nio+vtE
PCzTsRZynbNCY3UoIKfQlbA/fMqyayU05GAJyJT0kHl8M1H5PD5czJjUqztKQEv0
aJGmXN77drBC/qznGfpTPaAi1l6Gh7eBBj8/7yWXDSyI3n7SSAz0e4eDjZRhBZrH
hi2f6+xwpuTuOehUw0xo2rtJxl3o9qzNjwN05A8yoQKBgQDdOzuiAZtqBd7ERXZp
sYev17tLuLpiCHQ5a5ljh4jVrP1/bh3mNiTnFMk3TwJLIwBPlo2Ugbd/vsl+Db3+
EKDFTC2md5CaH04/1QSmFFjsHfN1ZoLdmedVntlR4Hzah44jNdWvHl0WYRjzfxcM
I782oawPYm73J7oGboiEfgtW8wKBgQDZoBNxcvjFZ+0LO5ms+ymWKwTnPpwGhW3M
D0DcPcF08GSnmyHvZoB51FG4GEIjMkWRpOX+pg2fxNjO0Y5QxS5vBg0A5KztDg4r
Kdy+McCZIWjCeF9O0mvhIXOKLFdUMrfp+s6GqJCIoht8QkxUuMn0TM3eq3p/WWts
xVCs/tMmGQKBgBSyPOLsCZECmZN8+BXtMMdnhDMSRgVzywOwKDpibI+ozlJEh/GI
cS1ZCXXuI0XKMXZAnGAfPn5p58muGW8SOSgb901SdCmm8hgQoo2y65qzNppuC6IV
ism8wZHiUWvUMJzkpWfrjEPSs5Xb9tkA4xuGRmVuDPl8Mu/1GTpj3EW3AoGBAMJI
0pLZ3ZX+7fS1RMDViY7y4PHBR3Ha9ObUR0dYKrnHU1T+fhFIJTKehkYgAguB+fHI
kTwB6u/TwOsC0lbxcj7T3BAMFwWbIrMOMG/r4tHSrb/PzuaDnKPkRU35wAz/KonM
y0wUeNRCRN9uIM8SGdnsJ26/ECFZJzp3/Uo0RTUhAoGAG8X00lkMTiVHuAZmP7PO
4lYfUQA8PZ6i/7A/SnHuwWI0MyWKLw3T/4mCdHyw9YwPshdVWCddY59L1GKxdzI5
V87lNmdkH7l6jDm7IwY5KX0voZ8uLB1zQ9lIakQxPTj5ydO2lPsJGE8784suwAhY
Y7UxYWWOAl7Pu0TfGXZjg+I=
-----END PRIVATE KEY-----
-----BEGIN CERTIFICATE-----
MIIDGzCCAgOgAwIBAgIUN4U/CuGb78PO+vzw370d0hz1aBUwDQYJKoZIhvcNAQEL
BQAwHTEbMBkGA1UEAwwSY2VwaC1yZ3cubG9jYWwuY29tMB4XDTI0MTIxNzA3MDAz
M1oXDTM0MTIxNTA3MDAzM1owHTEbMBkGA1UEAwwSY2VwaC1yZ3cubG9jYWwuY29t
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAvBGLXwiLcyrKMs4fQHom
DLiQHmxWgZBKRdNAGBr574sDgVMfH+Ao0rZ1wFLTau5xa4U5XWotQfqXS3maJs4H
xUzuqDdLc+igVxAyRvsqDKq3HtEZRiR+ouTC9c51plrFcp1Nca6hgtg9SYyBEbKM
sftbyLmB0fBAaSn+5XS2A6me/WwBBI9Wss8zziEuF94PQAFqNxDAi0cwlGWNRiH6
l7j4tsTCSmH6L1zNWoFNe/KgqjZRha47QBzkmKZjLLBjOt/CYfBMWicQVOFLynMX
OeBH8qWp3I+mX34BMdOwOrVRZOM0Kxaftr22E5HLN7ReSq0QbzdRMQ6rG36HwkyP
uwIDAQABo1MwUTAdBgNVHQ4EFgQUUxgqlKlO+Pmvr+1QYv0bzf8BY4wwHwYDVR0j
BBgwFoAUUxgqlKlO+Pmvr+1QYv0bzf8BY4wwDwYDVR0TAQH/BAUwAwEB/zANBgkq
hkiG9w0BAQsFAAOCAQEAJf0D5Wy3BS9fUWqqgxLgvUSuK9EzfVHyyBeAzW+AYzus
Iqv3KscFnJFkl8U7tfy0E/03z6LzA91Ok/6IvlsQA9w5agJF++nqNSatVbEin4Fr
h4hu1HFMDFLkaQeGLcaHBgmMWOgK0DonitYEJZMbHBBYY5W7IzoZfduaOsJaXVoG
rYCsoYlH2JHwIu3hXelzCLPfZhdBpvcgWIsQCnVy2n4y2WLRif0R+zPPZ4ZIz0qT
en7C+vmvtP9SrpI9eIPUC3VAcTKxftvzyOHqBIB0+BzDa8lk0b4MMmaJkzt7Uq1k
EJmfIFBAfER1wHb2vVPKd5/zi3h55T3D366M8yLx9Q==
-----END CERTIFICATE-----
ssl: true
rgw_frontend_port: 8443
EOF
root@ceph-1:/etc/ceph/rgw# ceph orch apply -i rgw.yaml
Scheduled rgw.default update...
root@ceph-1:/etc/ceph/rgw# ceph orch ps | grep rgw
rgw.default.ceph-1.rsdmtv ceph-1 *:9443 running (29s) 23s ago 29s 87.6M - 18.2.4 2bc0b0f4375d c4d059ef4eeb
rgw.default.ceph-2.hyhuzv ceph-2 *:9443 running (29s) 13s ago 29s 88.8M - 18.2.4 2bc0b0f4375d ff7f86383ba1
rgw.default.ceph-3.wnnkpd ceph-3 *:9443 running (30s) 24s ago 30s 88.4M - 18.2.4 2bc0b0f4375d 3d198beac816 6.2HaProxy部署
以下操作在 ceph1、2、3 机器执行
安装haproxy
root@ceph-1:~# apt install haproxy -y#修改配置文件
root@ceph-1:~# cat > /etc/haproxy/haproxy.cfg << EOF

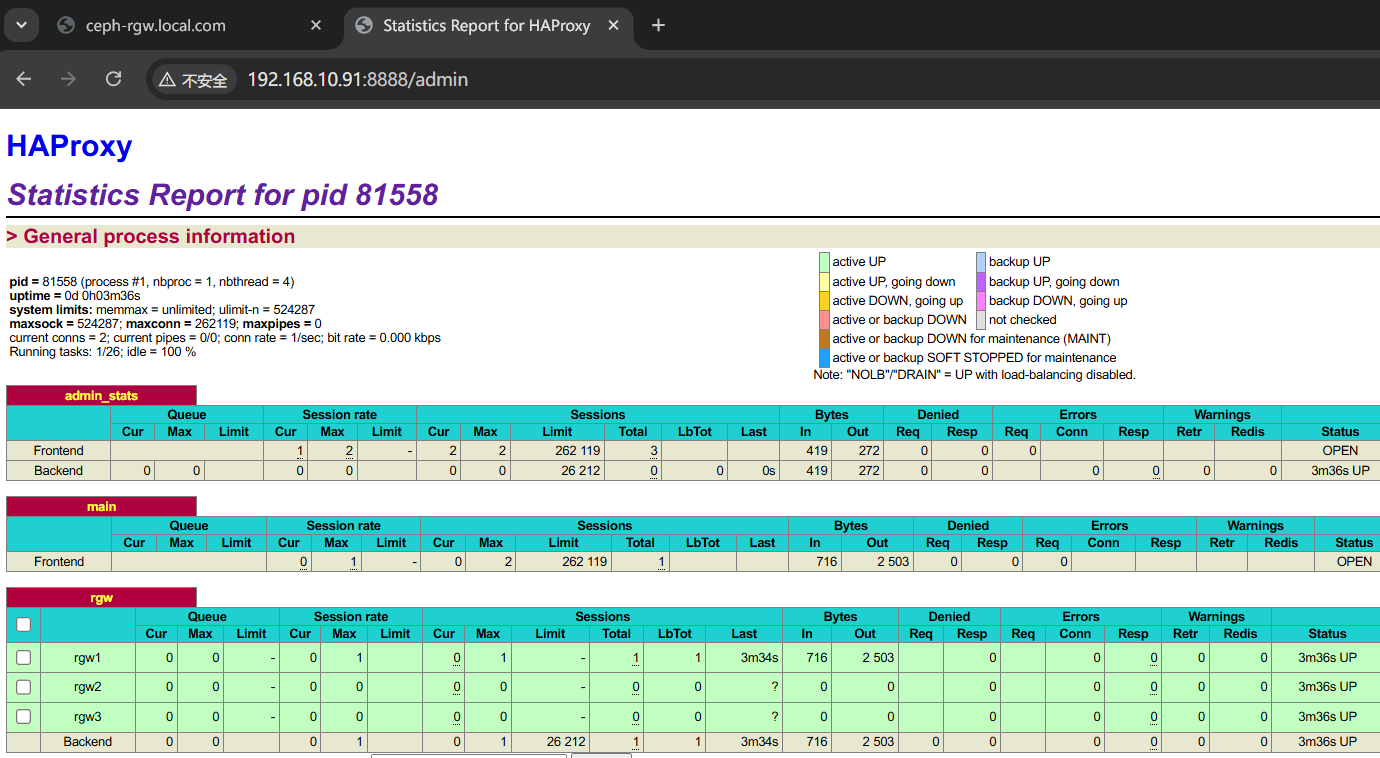

# 开启管理员监控页面
listen admin_stats
bind *:8888 # 监听的IP和端口号
mode http # 开启HTTP模式，stats功能需要
stats enable
stats refresh 30s # 统计页面自动刷新时间
stats uri /admin # 访问的uri ip:8888/admin
stats realm haproxy
stats auth admin:admin # 认证用户名和密码
stats hide-version # 隐藏HAProxy的版本号
stats admin if TRUE # 管理界面，如果认证成功了，可通过webui管理节点
timeout client 5s # 客户端超时
timeout connect 3s # 连接超时
timeout server 5s # 后端服务器超时
# 配置前端监听
frontend main
# 监听地址
bind *:443
# 匹配后端服务
default_backend rgw
# 客户端超时
timeout client 5s
# 配置后端代理
backend rgw
# 连接超时
timeout connect 3s
# 后端服务器超时
timeout server 5s
server rgw1 192.168.10.91:9443 check
server rgw2 192.168.10.92:9443 check
server rgw3 192.168.10.93:9443 check
EOF6.3启动服务
root@ceph-1:~# systemctl start haproxy
root@ceph-1:~# systemctl enable haproxy
Synchronizing state of haproxy.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable haproxy
root@ceph-1:~# ss -tunlp | grep haproxy
tcp LISTEN 0 4096 0.0.0.0:443 0.0.0.0:* users:(("haproxy",pid=61839,fd=7))
tcp LISTEN 0 4096 0.0.0.0:8888 0.0.0.0:* users:(("haproxy",pid=61839,fd=6))确认无误后 ceph-2 和 ceph-3 服务器同样的步骤配置。
七、KeepAlived部署
以下操作在ceph-1、2、3 机器执行，设备网卡名称为ens33，VIP为192.168.10.90。
安装软件包
root@ceph-1:~# apt install keepalived -y新增haproxy检测脚本
root@ceph-1:~# vim /etc/keepalived/check_port.sh
#!/bin/bash
# 检查指定端口是否正常
PORT=443
if netstat -tuln | grep -q ":${PORT}\b"; then
echo "${PORT}端口正常: 服务正在监听"
exit 0
else
echo "${PORT}端口异常: 未发现监听服务"
exit 1
fi
root@ceph-1:~# chmod u+x /etc/keepalived/check_port.sh修改配置文件
root@ceph-1:/etc/keepalived# cat > /etc/keepalived/keepalived.conf << EOF
global_defs {
script_user root
enable_script_security
}
vrrp_script chk_port {
script "/etc/keepalived/check_port.sh" # 自定义检测脚本路径
interval 1 # 检测间隔，单位为秒
weight -2 # 如果检测失败，权重降低2
}
vrrp_instance VI_1 {
state MASTER # 设置为master节点
interface ens33 # 物理网卡名称
virtual_router_id 51 # 虚拟路由ID，主备保持一致
priority 100 # 优先级，主大于备
advert_int 1 # 关播间隔
authentication { # 认证信息，主备一致
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.10.90/24 # 虚拟IP信息
}
track_script {
chk_port # 引用上面定义的脚本
}
}
EOF启动服务
root@ceph-1:/etc/keepalived# systemctl start keepalived.service
root@ceph-1:/etc/keepalived# systemctl enable keepalived.service
Synchronizing state of keepalived.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable keepalived
root@ceph-1:/etc/keepalived# ip a | grep 192.168.10.90
inet 192.168.10.90/24 scope global secondary ens33此时可以看到vip 192.168.10.90绑定到了 ceph-1服务器ens33 网卡上。
同样的操作配置 ceph-2服务器，配置文件如下：
global_defs {
script_user root
enable_script_security
}
vrrp_script chk_port {
script "/etc/keepalived/check.sh"
interval 2
weight -2
}
vrrp_instance VI_1 {
state BACKUP # 主备类型
interface ens33
virtual_router_id 51
priority 99 # 优先级低于主
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.10.90/24
}
track_script {
chk_port # 引用上面定义的脚本
}
}ceph-3 配置如下
global_defs {
script_user root
enable_script_security
}
vrrp_script chk_port {
script "/etc/keepalived/check.sh"
interval 2
weight -2
}
vrrp_instance VI_1 {
state BACKUP # 主备类型
interface ens33
virtual_router_id 51
priority 98 # 优先级低于主
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.10.90/24
}
track_script {
chk_port # 引用上面定义的脚本
}
}八、高可用测试
接下来停止 ceph-1服务，模拟异常故障，查看 ceph-2服务器，vip已经成功飘移过来
root@ceph-1:~# systemctl stop haproxy.service
root@ceph-2:~# ip a | grep 192.168.10.90
inet 192.168.10.90/24 scope global secondary ens33访问vip的 443 端口，可正常提供服务
评论 (0)
